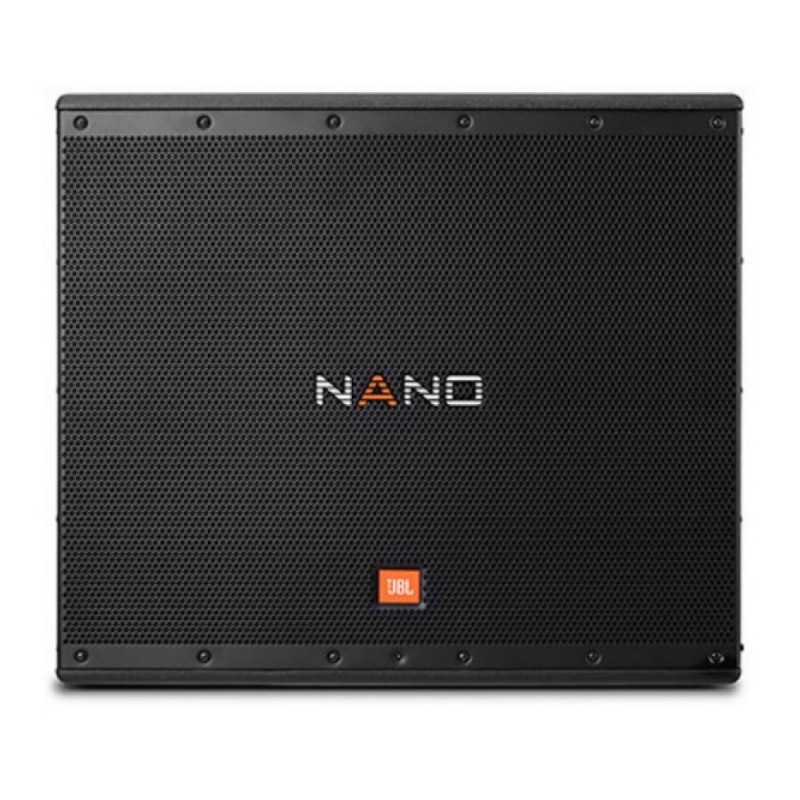

JBL NANO 358SP Professional AMP

18” Self-Powered Subwoofer

NANO358SP is an 18-inch self-powered portable subwoofer designed for a variety of live sound reinforcement applications supporting NANO full-range speakers. As one of the many representatives of recognized JBL craftsmanship, NANO358SP chooses carefully-selected material and quality components and is built to combine utility and portability with extraordinary acoustic performance. The NANO358SP enclosure is designed to maximize cabinet volume while maintaining a highly transportable footprint. JBL premium transducer ensures the NANO358SP to be the loudest, lowest and cleanest subwoofer in its class. NANO358SP comes with four crossover presets. By default, NANO358SP uses the “NANO” tuning, where a 100HZ crossover has been specifically tuned to compliment the NANO full-range speakers. For applications with other full-range speakers, 80Hz, 100Hz and 120Hz can be selected from.

FEATURES

∧

Self-powered 18” subwoofer

JBL premium tranducers

Maximum SPL output: 134 dB

Frequency Range (-10dB): 31Hz - 150 Hz

Frequency Response (-3dB): 42.5 Hz - 150 Hz

JBL engineered crossover presets

80 Hz

100 Hz

120 Hz

NANO

36 mm pole cup for use with full-range speakers

Rugged stage-ready DuraFlexTM enclosure

APPLICATIONS

^

Sound reinforcement for live performance, band gigging, small concert

For use with NANO300 full-range speakers

SPECIFICATIONS

^

System Type Self-powered 18” Subwoofer

Maximum SPL Output 134 dB

Frequency Range (-10 dB) 31 Hz - 150 Hz

Frequency Response (-3 dB) 42.5 Hz - 150 Hz

System Power Rating

(Peak/Continuous) 1000 W/500 W

Input Impedance 22 k (balanced)

Line Input Gain 0 - 36 dBu

Maximum Input Level (Line) +14 dBu

Connectors 2 × Balanced XLR-1/4” combination inputs; 2 × male XLR loop-thru out

Cooling Passive

AC Power Input 100-120 VAC 50/60 Hz; 230-240 VAC 50/60 Hz

AC Power Consumption (120V~) 1/8th Power - 1.14 A(Max), 1/4th Power - 1.71 A(Max), 1/3rd Power - 2.03 A(Max)

LF Driver 1 × JBL 618H 18” (457 mm) woofer with 2” voice coil

Crossover Frequency Selectable: 80 Hz, 100 Hz or 120 Hz

Enclosure Material DuraFlexTM coated wooden enclosure

Suspension/Mounting 36 mm Pole Cup

Handles 2

Grille Power coated, Obsidian, perforated steel with acoustically transparent black cloth backing

Dimensions (L × W × H) 582 mm × 668 mm × 645 mm

(22.9” × 26.3” × 25.4”)

Weight 35.5 kg (78.2 lbs)
